AC pull box

If the system includes an AC pull box, install the enclosure beneath the Met Enclosure with the following steps:

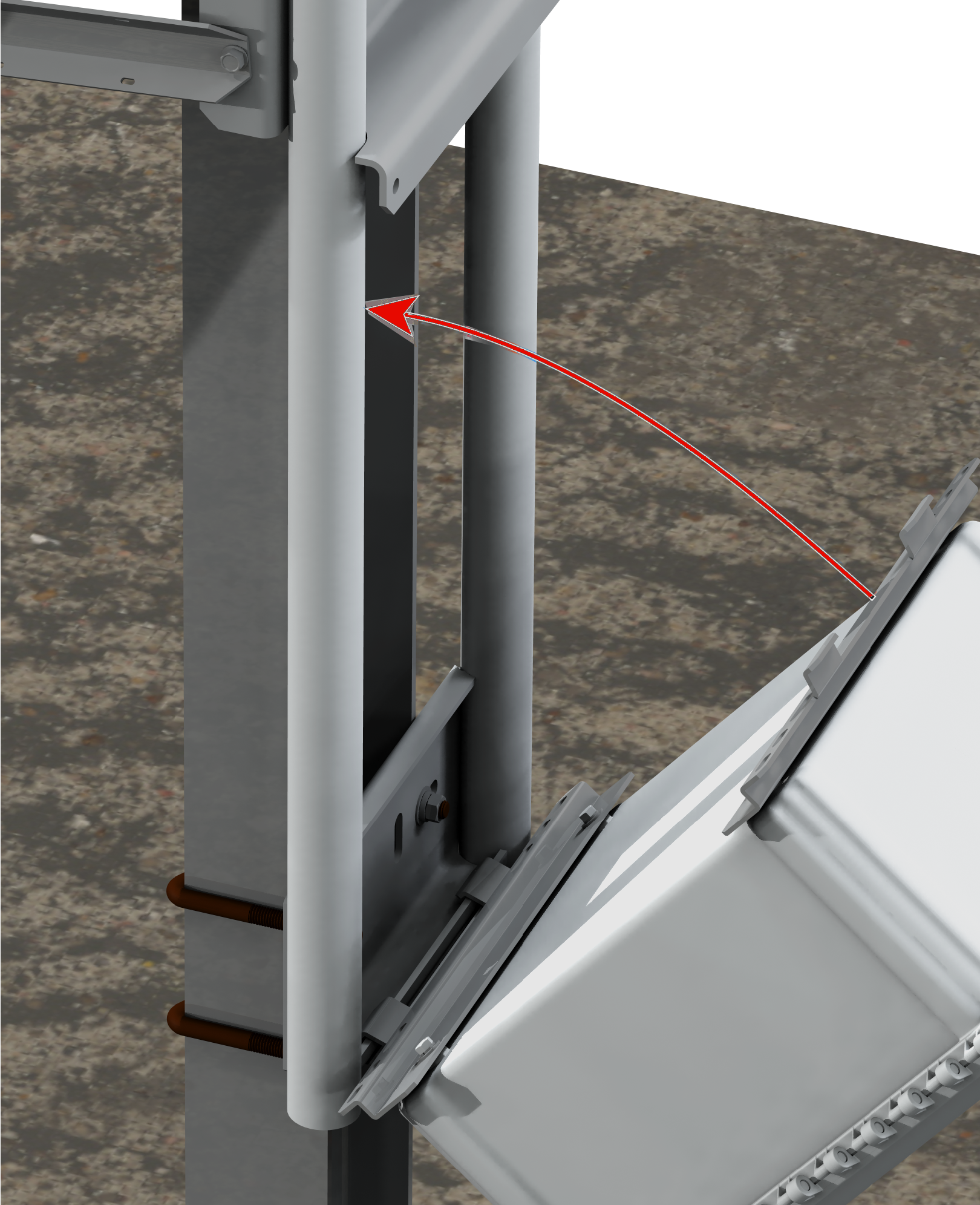

1. Place the lip of the mount attached to the bottom of the enclosure securely within the CM400.

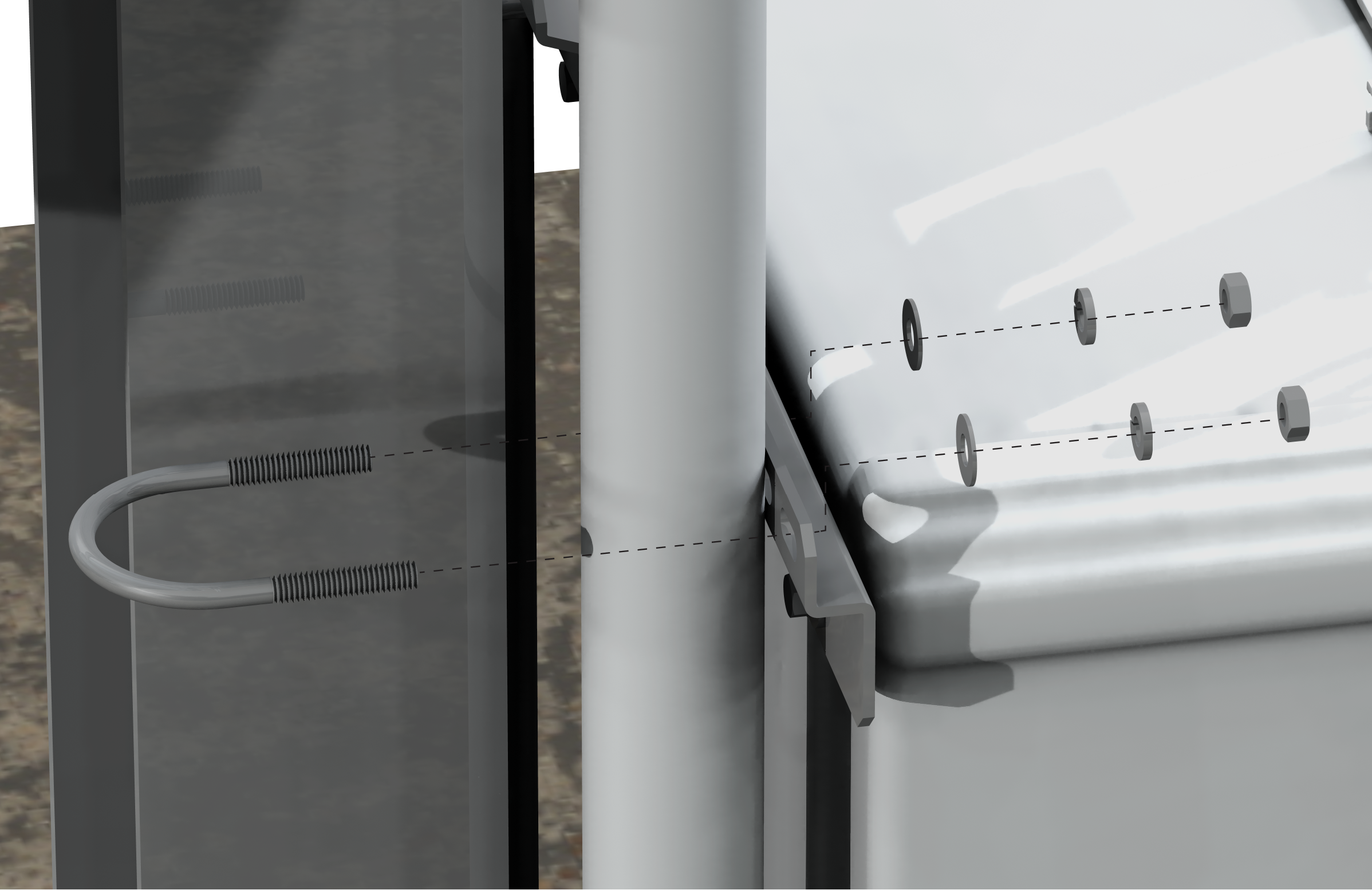

2. Secure the position of the enclosure with one of the two U-bolts provided.



3. Install the second U-bolt and tighten both U-bolts to a torque of 6 to 7 N·m (~4.5 to 5 lbf·ft).
