Solar panel angle

The support arms can be assembled in several different lengths. The available mounting angles are 30°, 45°, and 60°. Solar panel tilt angle1 provides recommended solar-panel angles for a range of latitudes.

Solar panel tilt angle1

Site latitude (N or S)

Tilt angle
0° – 27° 30°
28° – 42° 45°
>43° 60°

1From Design Aids for Small PV Power Systems, Solorex Corp.

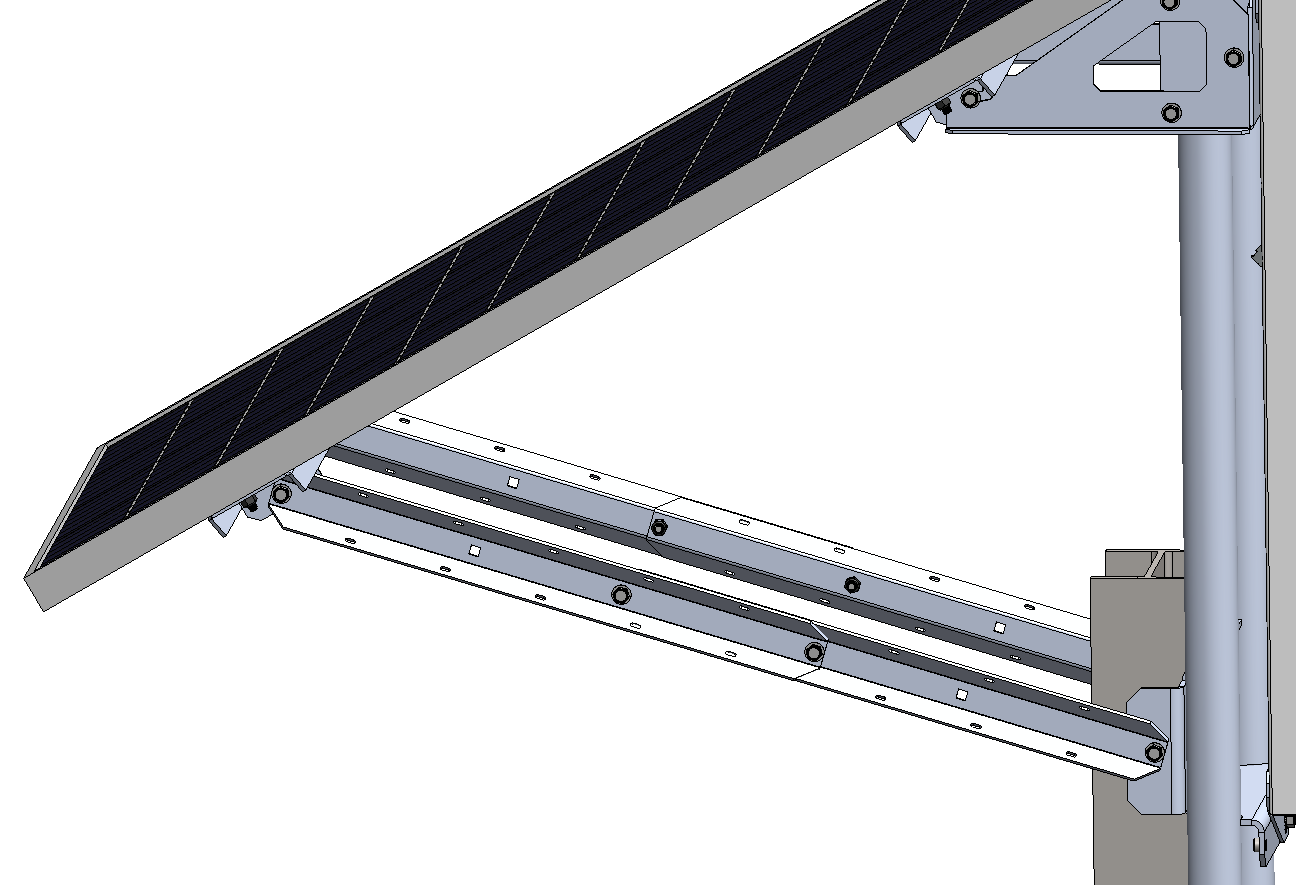

Solar panel at 60° angle

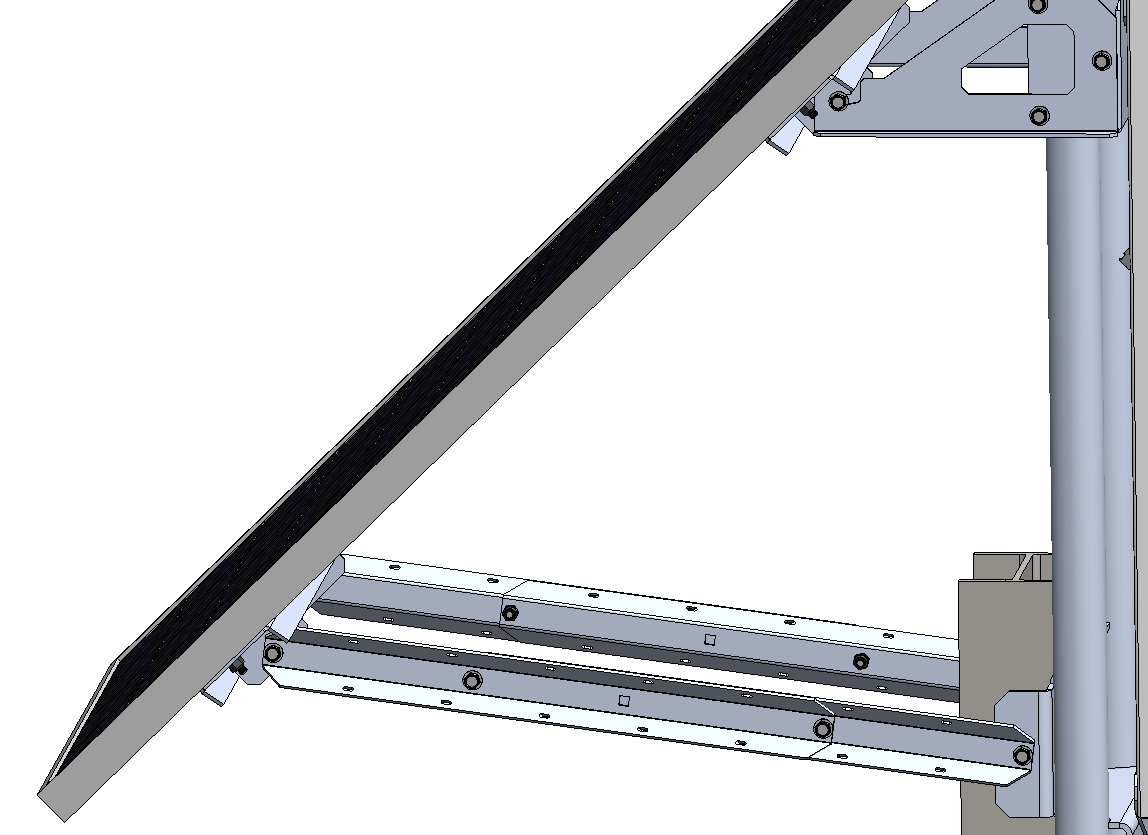

Solar panel at 45° angle

Solar panel at 30° angle
