CPIStatus and EPIStatus tables
Information in the CPIStatus and EPIStatus tables, located in the data logger, helps in troubleshooting.

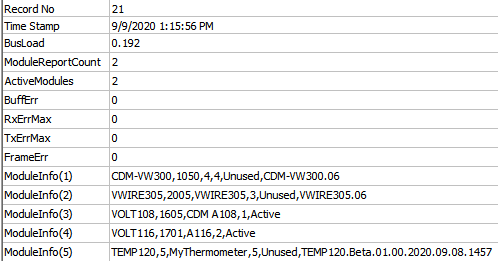

CPIStatus table

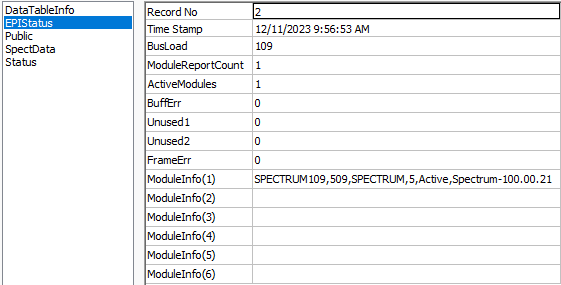

EPIStatus table
The ModuleInfo() array shows the following information:
Module Type, Serial Number, Device Name, CPI Address, Activity, Operating System Version
The activity entry in the ModuleInfo() index shows the current state of the module. Possible activity entries and their meanings are shown in the following table. The device serial number is displayed after the activity entry.
| Response | Meaning |
|---|---|
| Active | The module is connected to the CPI bus and is making measurements according to the data logger program. |
| Offline | The module was present after startup but is no longer responding. |
| Unused | The module is or was connected and powered but is not included in the data logger program. |
| Wait Config | The module has not yet responded to the attempts of a data logger to configure it. |
| Config Fail | The module could not be configured. A configuration error message is appended to this response. |
