Laser safety
The SkyVue 8 sensor incorporates an InGaAs laser diode which is rated as a class 3B device. This is an embedded laser where the output from the sensor unit, through the optics, is minimized to class 1M. This classification means the naked eye can safely view the beam but looking directly into the beam with optical instruments, such as binoculars, can be dangerous.
From the laser head the output has the following characteristics:
Maximum average power: 15.0 mW (through 50 mm)
Maximum pulse energy: 1500 nJ (through 50 mm)
Pulse duration: 100 ns
Pulse frequency: 10 kHz
Wavelength: 912 nm ± 5 nm
Tested to: EN 60825-1:2014
Half angle divergence: 0.44 mrad
The sensor is marked with the following warning information:
INVISIBLE LASER RADIATION
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
CLASS 1M LASER PRODUCT
IEC/EN 60825-1:2014
Do not operate the laser module while it is outside the housing.
Annually, check the laser warning label to ensure it is visible and can be clearly read.
When installing the sensor, avoid pointing the laser housing towards areas where binoculars are often used.
Use of controls, adjustments, or procedures other than those specified herein may result in hazardous radiation exposure.

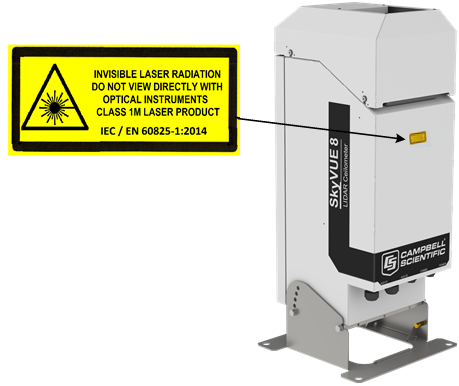

Location of laser warning label
Before removing the laser module, the sensor must be
