LED status

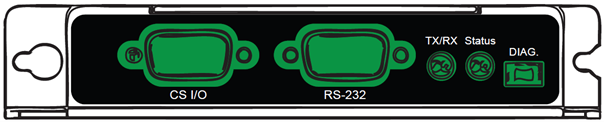

The RF451/RF452 has two red/green/orange LED status indicator lights on the front. Status LED and TX/RX LED show the status of each light when the RF451/RF452 is in various states of communications.
|
LED state |
Description |
|---|---|
|
Red (solid) |
Not used |
|
Green (solid) |
Not used |
|
Orange (solid) |
Configuration of processor or
radio |
|
Red (flash) |
RF451/RF452 powered by USB – radio not operational |
|
Green (flash) |
Device powered – configured in gateway or endpoint mode |
|
Orange (flash) |
Device powered – configured in repeater mode |
|
OFF |
No power |
|
LED state |
Description |
|---|---|
|
Red (solid) |
Not used |
|
Green (solid) |
Not used |
|
Orange (solid) |
Not used |
|
Red (flash) |
Transmit |
|
Green (flash) |
Receive |
|
Orange (flash) |
No gateway detected |
|
OFF |
No activity / No power |
