LoggerNet setup

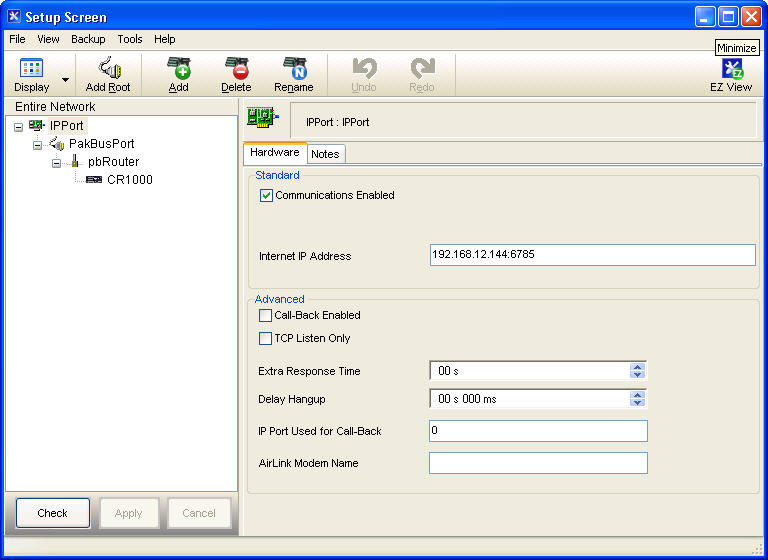

  1. In the LoggerNet Setup screen, click Add Root and select IPPort. Enter the NL200/201 IP address and port number. The IP address and port number are input on the same line separated by a colon. IPv6 addresses will need to be enclosed in square brackets when specifying a port number. An IPv4 address may look like 192.168.1.100:6785. An IPv6 address may look like [2001:db8::1234:5678]:6785. A fully qualified host name entry may look like yourlogger.com:6785.

  2. Add PakBusPort (PakBus Loggers).

  3. Add a PakBus Router (pbRouter). Enter the PakBus address of the NL200/201. The NL200/201 default PakBus address is 678. Click Close.

  4. Add the data logger and enter its PakBus address.

  5. Click Apply to save the changes.
