User entered values

UserEntered values will be applied at the factory prior to shipping if they are provided to Campbell Scientific when the DustVue is ordered.

Confirm all UserEntered values are entered correctly at the time of deployment.

CAUTION:

Be sure to check the Longitude_UserEntered, TempCoefflscTest_UserEntered, TempCoefflscRef_UserEntered, IscTeststc_UserEntered, and IscRefstc_UserEntered values.

If any UserEntered values need to be changed, do the following steps:

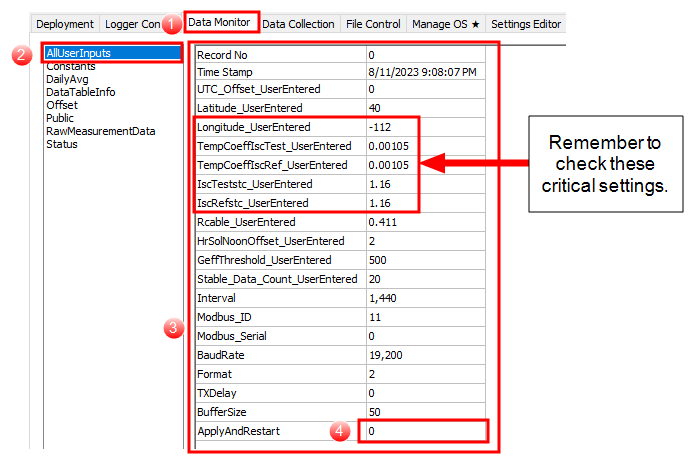

  1. Select the Data Monitor tab.


  2. Select the AllUserInputs table.

  3. For each value that needs to be changed, do the following:

    1. Double click on the value in the field that needs to be changed.

    2. Enter the correct value.

    3. Press Enter to set the correct value.

  4. When all values are corrected, set the ApplyandRestart variable to 1. Press Enter to reset the system and apply all the values.
