Changing nose cones
The procedure to change or replace a nose cone follows:
-

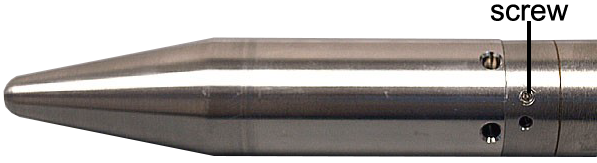

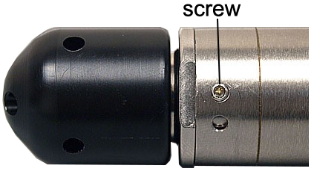

Remove the two screws (Screws on the standard nose cone (top), NPT nose cone (middle), and weighted nose cone (bottom)) using a 0.05-inch hex wrench.
-
Gently pull the nose cone away from the sensor housing.
-
Insert the new nose cone into the sensor housing.
-
Replace and tighten the screws.
CAUTION:
Do not use pliers or a wrench on the titanium housing tube. Using these can deform the housing and prevent the nose cone from seating properly.
