TimeIsBetween (Datalogger Clock Time is Between)
The TimeIsBetween function is used to determine if the datalogger's real-time clock falls within a range of time.
Syntax
TimeIsBetween ( BeginTime, EndTime, Interval, Units )
Example
Example #1
This simple example uses the TimeIsBetween function to set a flag high when the datalogger’s clock falls between the top of a minute and 15 seconds after the minute.
Public MyFlag As Boolean
BeginProg
Scan (1,Sec,3,0)
If TimeIsBetween (0,15,60,sec) Then
MyFlag = True
Else
MyFlag = False
EndIf
NextScan
EndProg
Example #2
In this example CR6 program, TimeIsBetween is used as the trigger for data table storage. Data is stored to the table for the first 5 minutes of every hour.
While the following code is for the CR6, similar code could be used for other dataloggers (the measurement channel and voltage ranges may need to be changed).
Public RefTemp, TCTemp
DataTable (First5,TimeIsBetween(0,5,60,min),9999 )
Sample (1,RefTemp,FP2)
Sample (1,TCTemp,FP2)
EndTable
BeginProg
Scan (1,Sec,3,0)
TCDiff (TCTemp,1,mv200C,U1,TypeT,RefTemp,True,0,15000,1.0,0)
CallTable First5
NextScan
EndProg
Remarks
The TimeIsBetween function returns True (-1) if the datalogger's real-time clock falls within the specified range; otherwise, the function returns False (0). TimeIsBetween can be used to control a process or task within the program (for instance, to control power to a device).

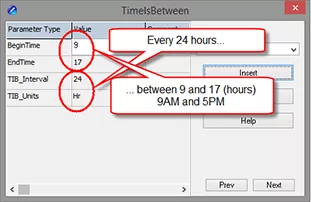

In this example, a modem is set to turn on between the hours of 9:00 a.m. and 5:00 p.m.
See Use Time Intervals for More than Storing Data for more information.
Parameters
BeginTime (Begin Time)
Enter the start of the time range to be used for the function. BeginTime is included in the range of time that will return True.
Type: Constant or Variable
EndTime (End Time)
Enter the end of the time range to be used for the function. EndTime is not included in the range of time that will return True.
Type: Constant or Variable
Interval
The Interval parameter is used to define how frequently the TimeIsBetween statement will evaluate as True, based on the datalogger's real-time clock. This parameter must be an integer. If a variable is used in this parameter, it is recommended to define it as a Long. Use of non-integers may result in the interval not evaluating as True when expected.
Type: Constant or Variable (declared as Long, recommended)
Units
Defines the unit of time to be used for the BeginTime, EndTime, and Interval. Right-click the parameter to display a list.
NOTE: When days are used, the first interval starts on a Monday. For example, TimeIsBetween(0,5,7,day) would perform a function every Monday through Friday.
| Code | Description |
|---|---|
| usec | microseconds |
| msec | milliseconds |
| sec | seconds |
| min | minutes |
| hr | hours |
| day | days |
Type: Constant
