Optional bird spike kit

NOTE:

With the bird spike kit installed, dips in the pyranometer data may occur (<6% error in total daily solar radiation during clear sky conditions). Correct installation reduces possible errors. For more information, refer to Bird spike kit and solar radiation data.

The optional bird-spike kit helps discourage birds from roosting on the ClimaVue 50 G2. The kit consists of a plastic ring with flexible spikes. When installed, the spikes point upwards and extend 10.2 cm (4 in) above the funnel. Their shape and location minimize interference with rain and solar measurements. The spikes are designed to repel, but hurt the birds.

The plastic ring includes secondary spike positions that can be drilled by the user to install additional short spikes. The additional spikes are to be provided by the user.

Items included in kit:

(13) Spikes (includes one spare)

(1) Spike ring

Required tools (not included):

(1) Pliers

Bird-spike kit installation procedure:

  1. Count all parts to ensure nothing was lost in shipping.

  2. Gently press a bird spike into a slot on the bird spike ring by hand.

  3. Using pliers, pinch the bird spike near its base and press down until it is fully seated.

  4. Repeat steps 2 and 3 for all bird spikes (Spikes inserted into the plastic ring slots).

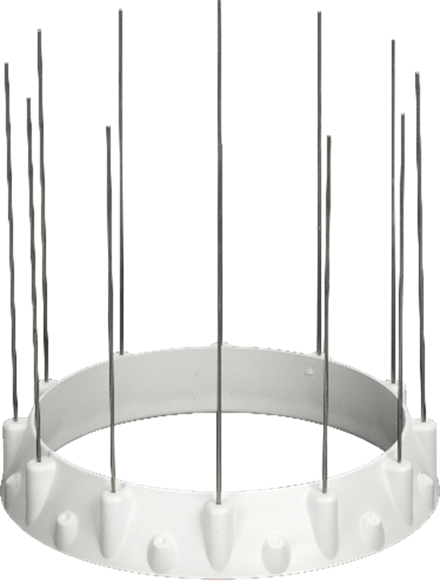

    Spikes inserted into the plastic ring slots

  5. Tug upward on each spike to make sure the spike is pressed in.

  6. Position the ring on top of the ClimaVue 50 G2 with the pyranometer aligned with the triangle between two spikes (Bird-spike kit mounted properly); this will limit spike shadows on the sensor.

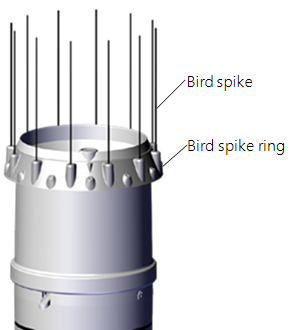

    Bird-spike kit mounted properly

  7. Press finished bird deterrent onto the ClimaVue 50 G2 funnel to at least the depth shown in Bird-spike kit mounted properly.

    NOTE:

    You can bend the spikes to minimize the shadow on the pyranometer.
