Module communications connections
The following table shows communications options for each Campbell Scientific data logger model.
| Data logger model | Connecting to CELL200 series via its CS I/O port |
Connecting to CELL200 series via its RS- 232 port |
|---|---|---|
| CR300 | N/A |
RS-232 null modem cable, or |
| CR310 | N/A | RS-232 null modem cable, or C-port to RS-232 cable (PPP or serial server) |
|
GRANITE 6 CR6 |
SC12 CS I/O cable (PPP and serial server) |
CPI/RS-232 cable, or C- or U-port to RS‑232 cable, or SC105 CS I/O to RS-232 interface |
|
GRANITE 10/9 CR1000X |
SC12 CS I/O cable (PPP and serial server) |
CPI/RS-232 cable, or C-port to RS-232 cable, or SC105 CS I/O to RS-232 interface |
| CR200(X) | N/A | RS-232 null modem cable (serial server only) |
| CR800 | SC12 CS I/O cable (PPP and serial server) |
RS-232 null modem cable (PPP or serial server), or C-port to RS-232 cable, or SC105 CS I/O to RS-232 interface |
| CR1000 | SC12 CS I/O cable (PPP and serial server) |
RS-232 null modem cable (PPP or serial server), or C-port to RS-232 cable, or SC105 CS I/O to RS-232 interface |
| CR3000 | SC12 CS I/O cable (PPP and serial server) |
RS-232 null modem cable (PPP or serial server), or C-port to RS-232 cable, or SC105 CS I/O to RS-232 interface |
| CR5000 | N/A | RS-232 null modem cable (serial server only) |
| CR510 and CR10X | N/A | SC105 CS I/O to RS-232 interface |
| CR510‑PB and CR10X‑PB | SC12 CS I/O cable
(serial server only) (SDC7 and SDC8 only) |
SC105 CS I/O to RS-232 interface |
| CR23X | N/A | RS-232 null modem cable (serial server only), or SC105 CS I/O to RS-232 interface |
| CR23X-PB | SC12 CS I/O cable (serial server only) (SDC7 and SDC8 only) |
RS-232 null modem cable (serial server only), or SC105 CS I/O to RS-232 interface |
The following figures illustrate the most common communications connections between a data logger and a CELL200 series.

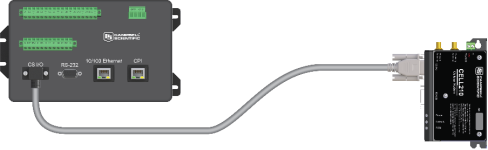

CS I/O connection using an SC12 cable
The SC12 is used to connect the module to a data logger CS I/O port.

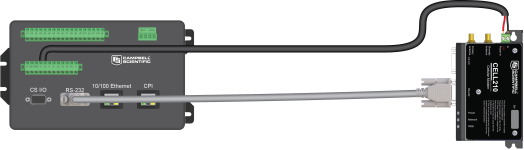

RS-232 connection using a null modem cable
Null Modem Cable is used to connect the module to the CR3000, CR800, CR2XX, CR300 series, or CR1000 RS-232 port. Power is provided from the 12V or SW12V port of the data logger.
CR1000X or CR6 RS-232 connection using a CPI/RS-232 cable
RS-232/CPI RJ45 to DB9 Male DTE is used to connect the module to the CR6 or CR1000X. Power is provided from the 12V or SW12V port of the data logger.
