Configure data logger

1. Connect to your data logger by using Device Configuration Utility.

2. On the PPP tab, set Config/Port Used to CS I/O SDC8 or RS-232, depending on how you are connected to the data logger.

3. (Optional) On the PPP tab, set User Name and Password if required by your cellular carrier (usually outside of the United Sates).

4. Verify the Modem Dial String setting is blank.

5. If connecting through RS-232, on the Comport Settings tab, set RS232 BaudRate to 115200 Fixed.

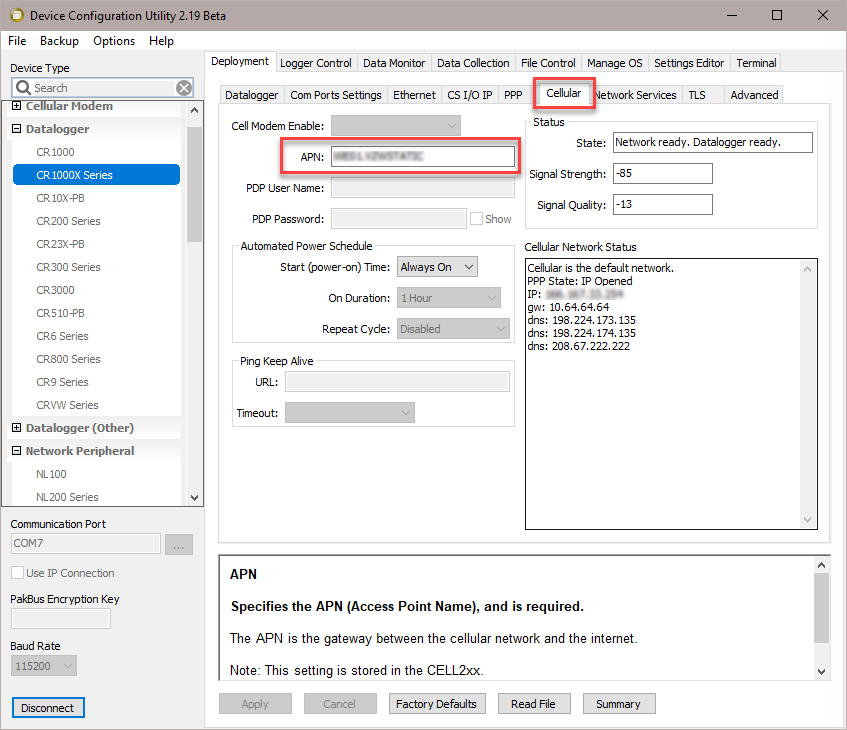

6. On the Cellular tab, enter the APN provided by your cellular provider.



7. (Optional) By default, the CELL200 series will accept incoming communications from any IP address. This can be a security risk. You may specify up to four IP addresses, with wild cards, to limit connections to only those trusted sources. Use an asterisk (*) as a wild card. For example, a setting of 166.22.*.* would allow connections from devices that have IP addresses starting with 166.22. Both IPv4 and IPv6 addresses are supported.

   CAUTION:

   Only set a Trusted IP address if you are familiar with their use. Consult your IT department or Campbell Scientific for assistance.

   NOTE:

   This setting does not affect outbound connections, only incoming connections.

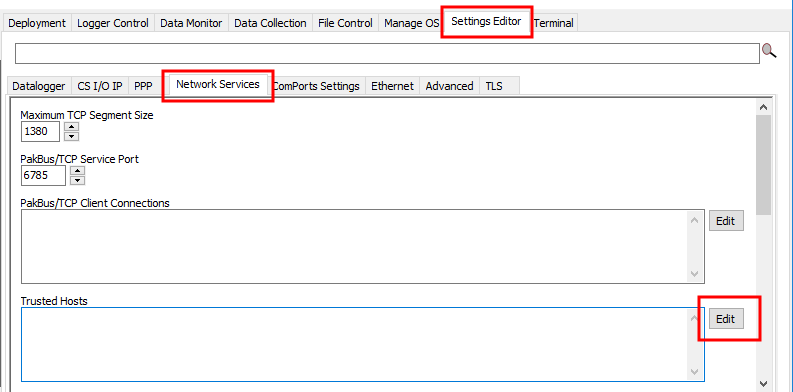

   In the Device Configuration Utility go to the Settings Editor then Network Services. Next to the Trusted Hosts field, click Edit and Add your trusted IP addresses, one at a time.


   (Click image to expand/collapse display)

8. Click Apply to save the changes.
