Single-ended voltage measurement

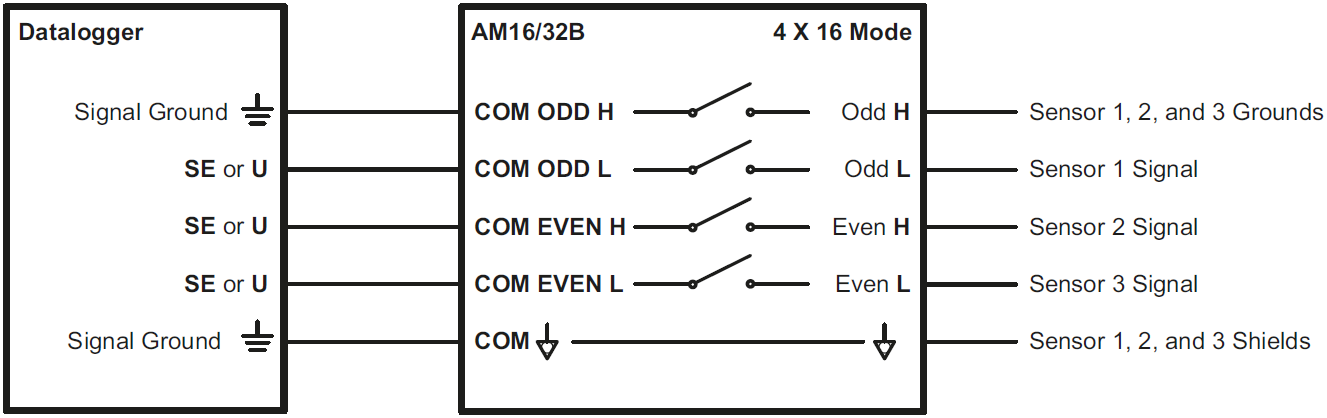

Typical single-ended voltage measurement connection shows a typical connection for single-ended voltage measurements. Using this method, a data logger can make up to 48 single-ended voltage measurements through a multiplexer.
Refer to the following downloadable example programs and Wiring for single-ended voltage measurements CRBasic example:
-
Example B-1: CR300 single-ended measurements with the AM16/32B
-
Example B-2: CR1000X single-ended measurements with the AM16/32B
-
Wiring for single-ended voltage measurements CRBasic example: Provides the programs and wiring diagrams
Alternatively, use Short Cut to create the program. With minor adjustments, the CR1000X program can be used with the CR6, CR3000, CR800-series, or CR1000. In either case, the AM16/32B must be in 4x16 mode. View the program in the CRBasic Editor.
U terminals are only available on the CR6 data logger.
